Drum and Tote/IBC Solutions
KleerBlue offers a wide variety of affordable open and closed dispensing solutions for drum and totes/IBCs. These solutions are designed to accommodate various budget and flow rate requirements. From electric to air-driven, from manual to gravity, KleerBlue has the solution you need.

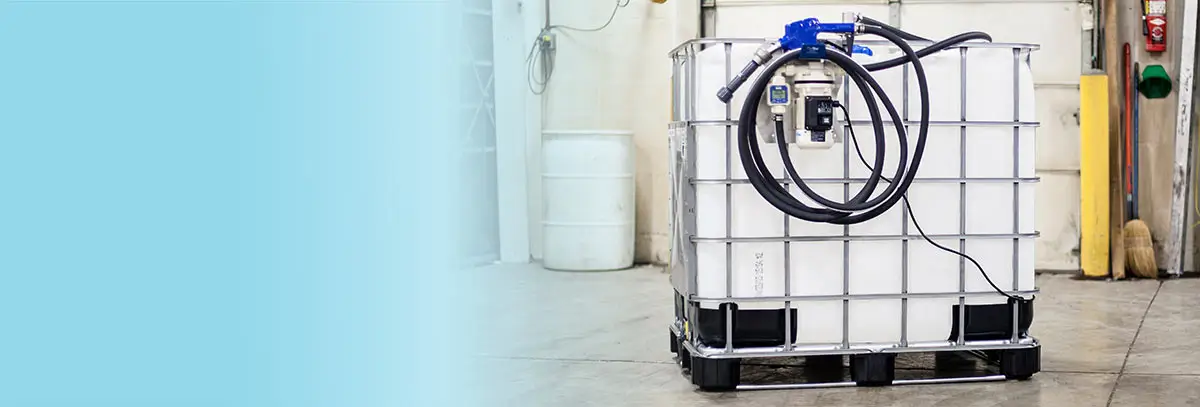

Dispense DEF from 275 and 330 gallon totes. KleerBlue offers a wide range of systems at various flow rates.
KleerBlue™ Drum and Tote/IBC Solutions
Closed System Dispensing Solutions
Avoid DEF contamination by using a closed system dispensing solution. KleerBlue offers several options including a side-mounted electric, top-mounted electric, and air-driven dispenser. Each electric option is available with or without a meter and with a 12 or 110-volt motor.
- 8 GPM capability
- Self-priming membrane pump,
- 12 or 110-volt motor
- Optional meter
- 20′ Delivery hose
- Stainless steel automatic shut-off nozzle with swivel end
- Tote side mount bracket
- Stainless steel Micro Matic RSV dispense couple for a quick connection and drybreak release
- Stainless steel automatic nozzle with swivel
- Closed Systems: Micro Matic stainless steel RSV dispense coupler
- 17.5 GPM capability
- Non-metallic polypropylene pump
- Double diaphragm
- Maximum of 100 PSI operating pressure
- Top-mounted bedplate
- Micro Matic-type coupler
- Suction and discharge hose
- Stainless steel automatic nozzle
- Air-regulator (not included) is required for safe and satisfactory service
Open Dispensing System
Dispense DEF from 275 and 330 gallon totes/IBCs where a closed system isn’t required with these affordable dispensers. KleerBlue offers several options including a top-mounted electric, air-driven, and gravity dispenser. The electric and air-driven options are available with or without a meter.
The system pumps can be connected to your vehicle via battery cable and clamps or permanently wired to your truck.
- 9-10 GPM capability
- Self-priming immersion pump
- 110-volt electric motor
- 12′ coupled delivery hose (30′ maximum)
- Optional meter with re-settable display
- Stainless steel automatic shut-off nozzle and swivel
- Suction hose
- Nozzle holder
- Screw clamps and thread sealant
- 9′ hose
- Manual nozzle
- Vent
- All required fittings
Download Product Documents Below
KleerBlue™ Drum and Tote Catalog
