TCS 500 Oval Gear Meter
The Oval Gear meter is a precise positive displacement flowmeter incorporating a pair of oval geared rotors. These meters are capable of measuring the flow of a broad range of clean liquids. Stainless Steel flowmeters are suited to most water-based products, chemicals, and lubricating liquids. The flow meter is available as a blind pulse meter with a non-factored pulse output capable of interfacing to most monitoring and control instrumentation.
TCS 500 Oval Gear Positive Displacement Flow Meter
Design Principle
The Oval Gear meter is a precise positive displacement flow meter incorporating a pair of oval geared rotors. These meters are capable of measuring the flow of a broad range of clean liquids. Stainless Steel flow meters are suited to most water based products, chemicals and lubricating liquids.The flow meter is available as a blind pulse meter with a non-factored pulse output capable of interfacing to most monitoring and control instrumentation.
Specifications
- FLOW RANGE: 4 to 180 GPH (15 to 681 LPH)
- LINEAR ACCURACY: Capable of ± 1%
- REPEATABILITY: Capable of 0.03%
- OPERATING PRESSURE: Up to 150 PSI (10.5 BAR
- TEMPERATURE RANGE: -30°F to 176°F (-34°C to 80°C)
- CONNECTIONS: 3/8″ NPT
- TEMPERATURE RANGE: -30°F to 176°F (-34°C to 80°C)
- HALL EFFECT OUTPUT: 3 wire open collector, 5vdc at 20 mA max
- PROTECTION CLASS: Built to IP66/67 (NEMA 4X)

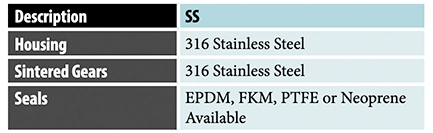

Meter Materials of Construction
Total Control Systems TCS 500 Oval Gear Meter Brochure
