AQUAsonic from the SONIC SERIES of flow meters

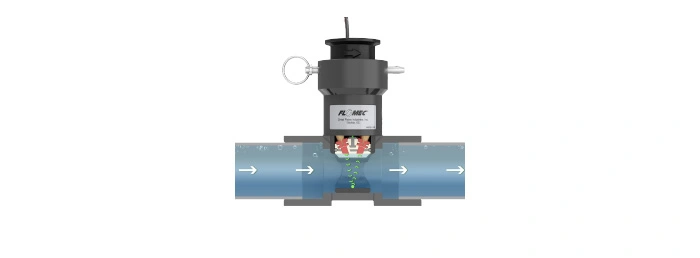

AQUAsonic delivers the ultimate total cost of ownership for irrigation flow measurement. It’s powerful combination of ultrasonic flow sensor and Q9 computer display provides accurate flow measurement and ease of reading in the field. AQUAsonic provides valuable warnings on system performance detecting possible performance detecting possible leaks or line blockage. And with no moving, wearable parts customers benefit from season-long accurate readings, simple winterization line clearing, and overall low maintenance.

Low Maintenance

No moving, wearable parts. Easy prep for winterization

The FLOMEC G2 High-temp Sanitary meter

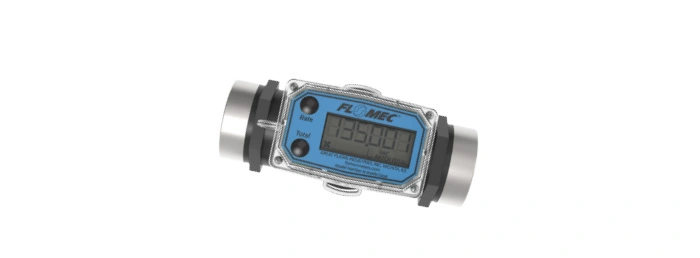

Powerful & Configurable On-Site Readings

Battery-powered local computer display. Measure flow range of 0.1 to 15fps.

The FLOMEC G2 High-temp Sanitary meter




The AQUAsonic meter takes our highly accurate Ultrasonic insert and adds our very popular Q9 Display. This meter provides an accurate reading of water flow rate and accumulated total. It is designed to support commercial and industrial applications. Battery-powered local computer display. Measure flow range of 0.1 to 15fps. Designed for above and below grade applications, such as irrigation, municipal and underground monitoring where the flow rates are between 0.1 to 15 fps (0.03 to 4.6 m/s) and temperatures are below 140° F (60° C). AQUAsonic can be configured in 4-20mA / Scalable Pulse Output, OR battery powered, and in various saddle/size options.

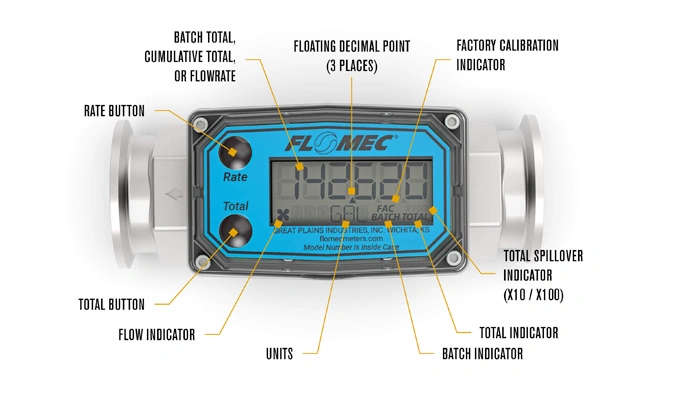

The FLOMEC G2 High-temp Sanitary meter Diagram
Benefits:
  • Low-cost, effective and easy installation
  • No moving mechanical parts (low-maintenance)
  • Pin protection, four digit user selectable
  • 2 Totals (Batch Total and Accumulative Total); Rate of Flow
  • Diagnostic Meter show % of battery life only on battery powered AQUAsonic (battery powered version only)
  • 11 pre-programed engineering units including gallon, litre, quart, ounces, and one user-configurable custom unit
  • High accuracy: ± 2.0% of reading (compared to full scale accuracy)
  • Provides extended leak detection down to 0.1 fps (0.03 m/s)
  • Patented design
  • Many field configurable options for ease of operation
Applications
  • Agriculture Irrigation
  • Turf / Landscape Irrigation Systems
  • Micro Irrigation Systems
  • Groundwater Monitoring
  • Sub-Metering Applications: High Rise Tenant Buildings, Apartment Complex, Universities, Universities, and Processing Facilities



Flowmeters Engineered To Be Better

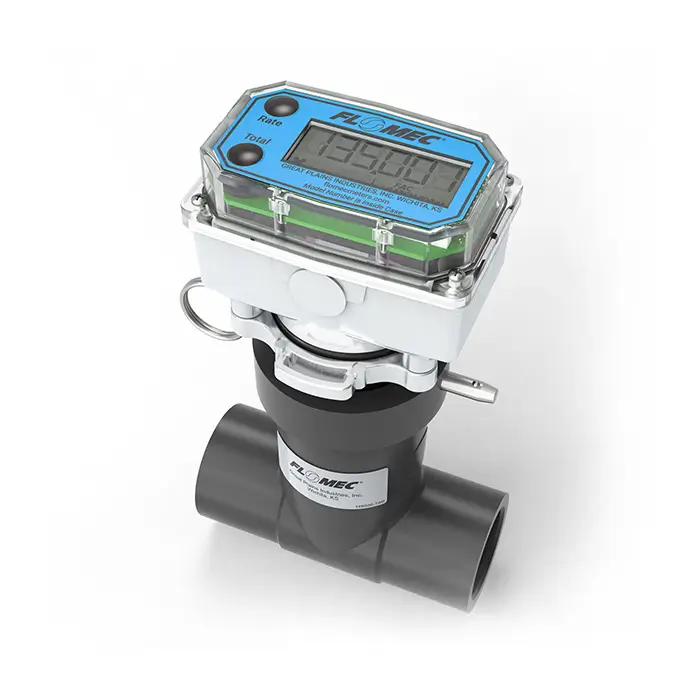

AQUAsonic Insertion Ultrasonic Flow Meter
AQUAsonic Insertion Ultrasonic Flow Meter
The AQUAsonic takes our highly accurate Ultrasonic insert and adds our very popular Q9 Display. The AQUAsonic provides an accurate reading of water flow rate and accumulated total. It is designed to support commercial and industrial applications. The AQUAsonic is available in five line sizes, 1 to 4 in. Designed for above and below grade applications, such as irrigation, municipal and underground monitoring where the flow rates are between 0.1 to 15 fps (0.03 to 4.6 m/s) and temperatures are below 140° F (60° C). UM can be configured in 4-20mA, Pulse Out, or battery powered options, and in 5 tee options.


Features/Benefits:

  • Low-cost, effective and easy installation
  • No moving mechanical parts (low-maintenance)
  • Pin protection, four digit user selectable
  • 2 Totals (Batch Total and Accumulative Total); Rate of Flow
  • Factory calibrated in gallons or litres
  • Diagnostic Meter show % of battery life only on battery powered AQUAsonic
  • High accuracy: ± 2.0% of reading (compared to full scale accuracy)
  • Provides extended leak detection down to 0.1 fps (0.03 m/s)
  • Patented design
  • Certified NSF61 option for those applications where potable water regulations must be met (NSF (N1) models)
  • Many field configurable options for ease of operation
AQUAsonic Insertion Ultrasonic Flow Meter

Applications:

  • Irrigation & Fresh Water Pumping Station
  • Industrial Effluent Water
  • OEM Water Treatment equipment/skids
  • Water Base Cooling System
  • Plant Water System
  • Potable Water
  • Sub-Metering Applications: High Rise Tenant Buildings, Apartment Complex, Universities, Universities, and Processing Facilities
Download Product Documents Below

FLOMEC® AQUAsonic Insertion Ultrasonic Flow Meter Data and Options Sheet

Download More Info

FLOMEC® AQUAsonic Brochure

Download More Info

FLOMEC® AQUAsonic FAQ

Download More Info
AQUAsonic Saddle For Large Pipe Sizes
FLOMEC® AQUAsonic Saddle For Large Pipe

The AQUAsonic meter takes our highly accurate Ultrasonic insert and adds our very popular Q9 Display. This meter provides an accurate reading of water flow rate and accumulated total. It is designed to support commercial and industrial applications. Our AQUAsonic is available in 4 saddle line sizes, 6, 8, 10, 12in. Designed for above and below grade applications, such as irrigation, municipal and underground monitoring where the flow rates are between 0.1 to 15 fps (0.03 to 4.6 m/s) and temperatures are below 140° F (60° C). UM can be configured in 4-20mA, Pulse Out, or battery powered options, and in 5 tee options.
FLOMEC® AQUAsonic Saddle For Large Pipe


Features/Benefits:

  • Low-cost, effective and easy installation
  • No moving mechanical parts (low-maintenance)
  • Pin protection, four digit user selectable
  • 2 Totals (Batch Total and Accumulative Total); Rate of Flow
  • Factory calibrated in gallons or litres
  • Diagnostic Meter show % of battery life only on battery powered AQUAsonic
  • High accuracy: ± 2.0% of reading (compared to full scale accuracy)
  • Provides extended leak detection down to 0.1 fps (0.03 m/s)
  • Patented design
  • Certified NSF61 option for those applications where potable water regulations must be met (NSF (N1) models)
  • Many field configurable options for ease of operation
AQUAsonic Insertion Ultrasonic Flow Meter

Applications:

  • Irrigation & Fresh Water Pumping Station
  • Industrial Effluent Water
  • OEM Water Treatment equipment/skids
  • Water Base Cooling System
  • Plant Water System
  • Potable Water
  • Sub-Metering Applications: High Rise Tenant Buildings, Apartment Complex, Universities, Universities, and Processing Facilities

Contents:

AQUAsonic FLOMEC® AQUAsonic Saddle For Large Pipe
Download Product Documents Below

FLOMEC® AQUAsonic Saddle For Large Pipe Sizes Data and Options Sheet

Download More Info

FLOMEC® AQUAsonic Brochure

Download More Info

FLOMEC® AQUAsonic FAQ

Download More Info




Full AQUAsonic Overview Video
